**SPECIAL ORDER ITEM**

NOTE: This product is special order and usually takes 10 business days. Please contact us with any questions regarding the order.

ALL SIDE MOUNTS ARE METALLIC GLOSS BLACK

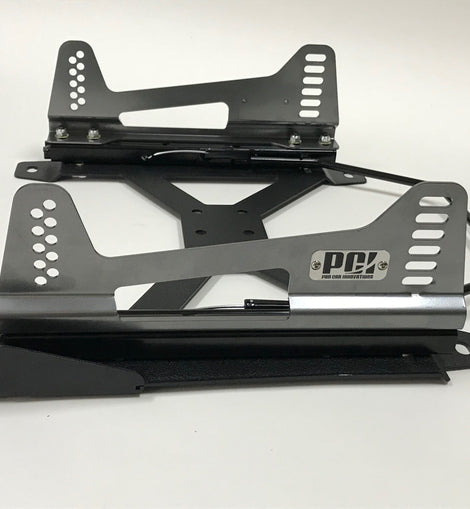

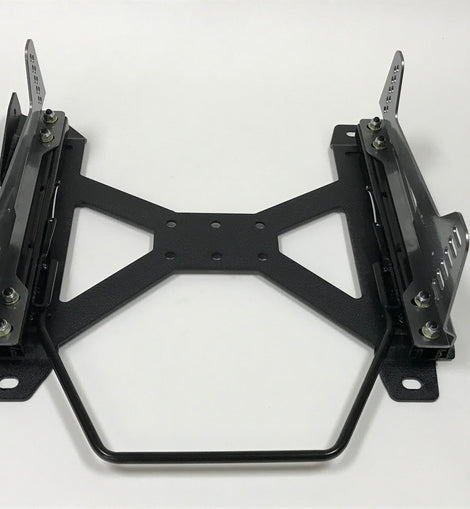

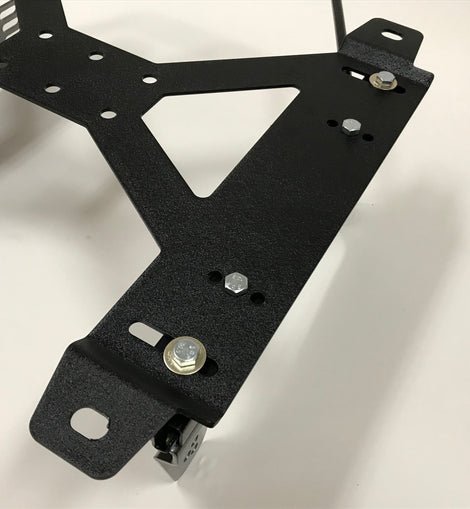

Wondering how to mount that new race seat?  Pro Car Innovations Racing Spec Seat Mounts takes the guessing game out of this install. Finding the correct seat brackets can be almost impossible where most end up with a self-fabricated mount. The PCI S1 sliders are one of the strongest sliders available. Each slider bolts to the base with 4 bolts making them twice as strong as 2 bolt mounting. PCI has invested the research in order to create an ingeniously crafted safe design that’s easily adjustable to accommodate multiple applications. Our Slider Seat Mounts are designed to bolt directly to the factory seat mount locations and simplify that new race seat install.

1/8” steel vs. 3/16” steel

Our mounts are laser cut and CNC formed completely from one piece for strength, stiffness and weight savings. With our design we can achieve the same strength if not more than 3/16″ steel by having bends and altering the shape to areas where increased strength and stiffness is required. So don’t be fooled by thicker heavier steel is better. 3/16” steel is more widely used for the simplicity of design and manufacturing. Our mounts will exceed the strength of the seat and floor they’re bolted to. Some applications depending on the design will call for 3/16″

Features

• Precision CNC laser cut and bent from one piece of 1/8” 3mm carbon steel
• Multi way adjustability
• PCI S1 high strength sliders, mounts to base with 4 bolts per slider
• 5 and 6 point sub belt mounting locations
• Single tool adjustments with bottom locking hardware
• grade 10.9 8mm hardware
• Powder coated base and side mounts
• ¼”  black nylon side mount spacers
• Stainless steel laser etched logo plates

Benefits

• CNC bent one piece design allows for use of lighter 1/8” steel vs. heavy 3/16”
• No modifications to any PCI seat mount components are required for installation
• Uniquely designed for each car for the best possible fitment
• Mounts to factory bolt locations with precise factory fitment
• 5 and 6 point sub belt mounting

Specs

• 3mm carbon steel base and side mounts
• CNC laser cut, CNC bent
• Powder coated base and side mounts
• Gloss black metallic side mounts
• Zinc plated grade 8 hardware
• 14-3/4”­(375mm) to 17-1/2”(445mm) width adjustments (standard side mounts) **MINUS 1″ FOR ALL MX5 SEAT MOUNTS **
• 16”­(406mm) to 18-3/4”(476mm) width adjustments (wide side mounts) **MINUS 1″ FOR ALL MX5 SEAT MOUNTS USE S2 SIDE MOUNT**
• 9 5/8”­(245mm) range front to back adjustments

**DISCLAIMERS**

• Seats come in many different shapes and sizes so not all seats will fit in all vehicles. It is up to the end user to determine if the seat will fit prior to ordering the Seat Bracket and other components.
• Many vehicles have the steering wheel offset toward the center of the vehicle. This can be accentuated when installing an aftermarket seat of a different size then the factory seat.
• Replacing a factory seat with an aftermarket seat may cause the vehicle's warning indicators to activate. This can be due to airbag, weight and/or other sensors in the factory seat that are not included in an aftermarket seat. It may be possible to eliminate these indicators with an electronic resistor but it is up to the end user to determine if a resistor will work & which resistor to use.
• Professional installation is recommended.

***Image shown above is for demonstration purpose only. Actual shape of the product may varies.***
